johnny95sl2 summer fun

[johnny95sl2]

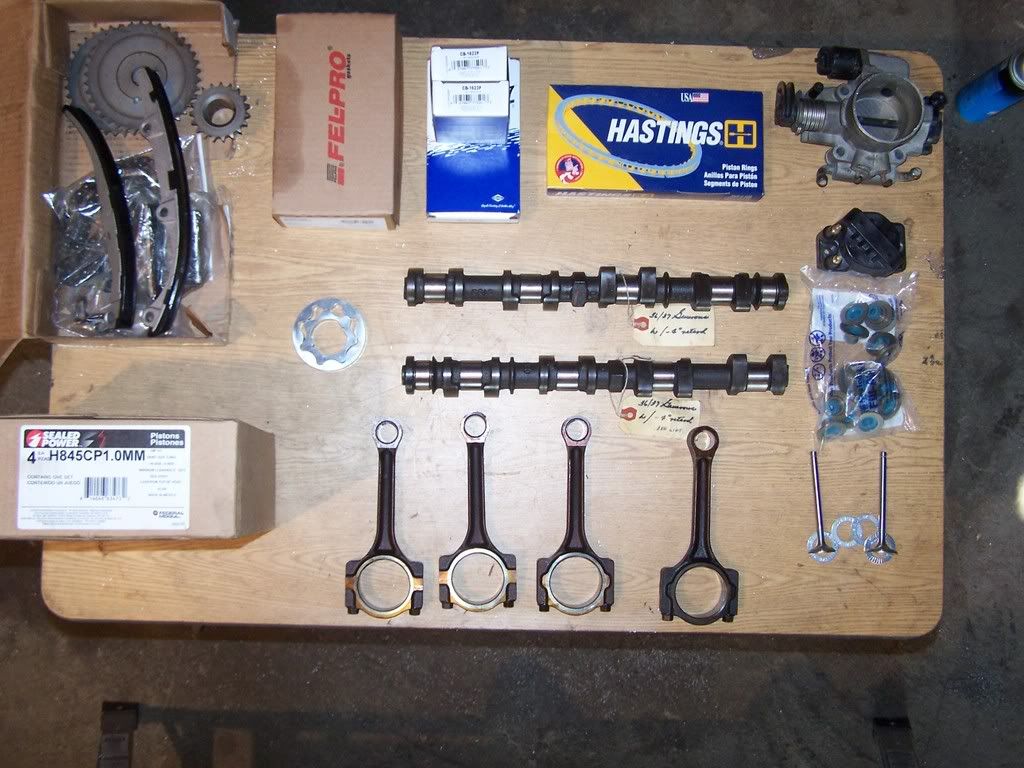

Heres the build:

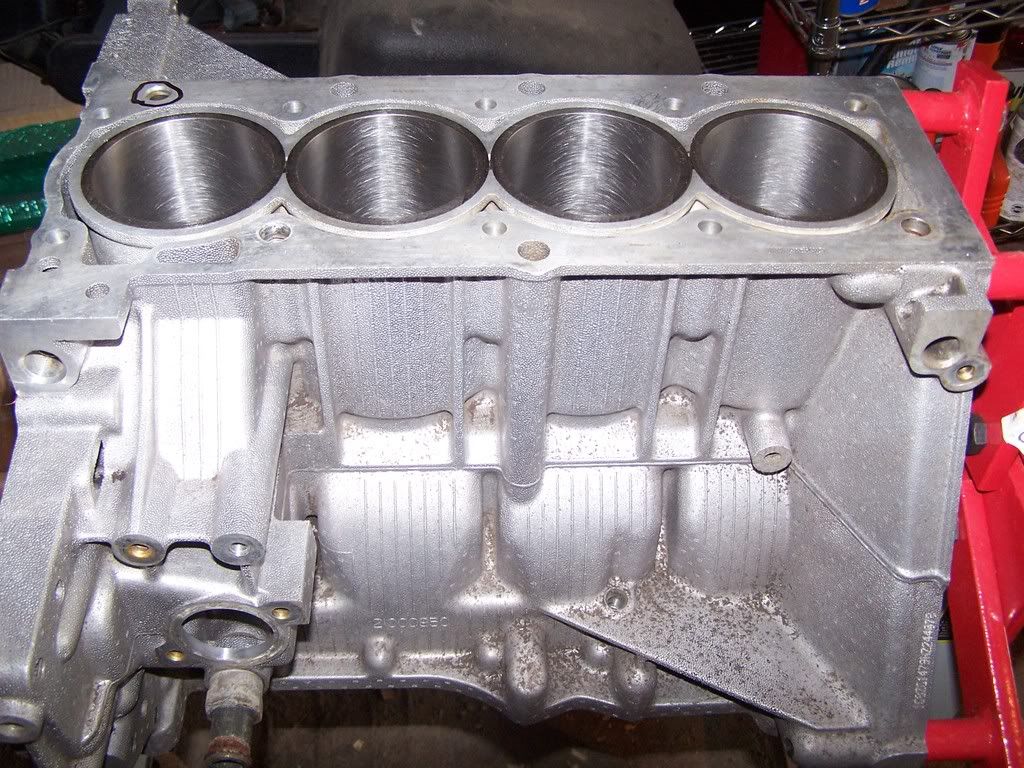

Block bored .040 over
sealed power pistons cut for 11.5:1 C.R.
99+rods
P+P head with hi flow valves
98 valve springs
.030 spring shims
rebuilt lifters
Ported intake manifold
SDA manifols spacer
Geo Storm T.B.

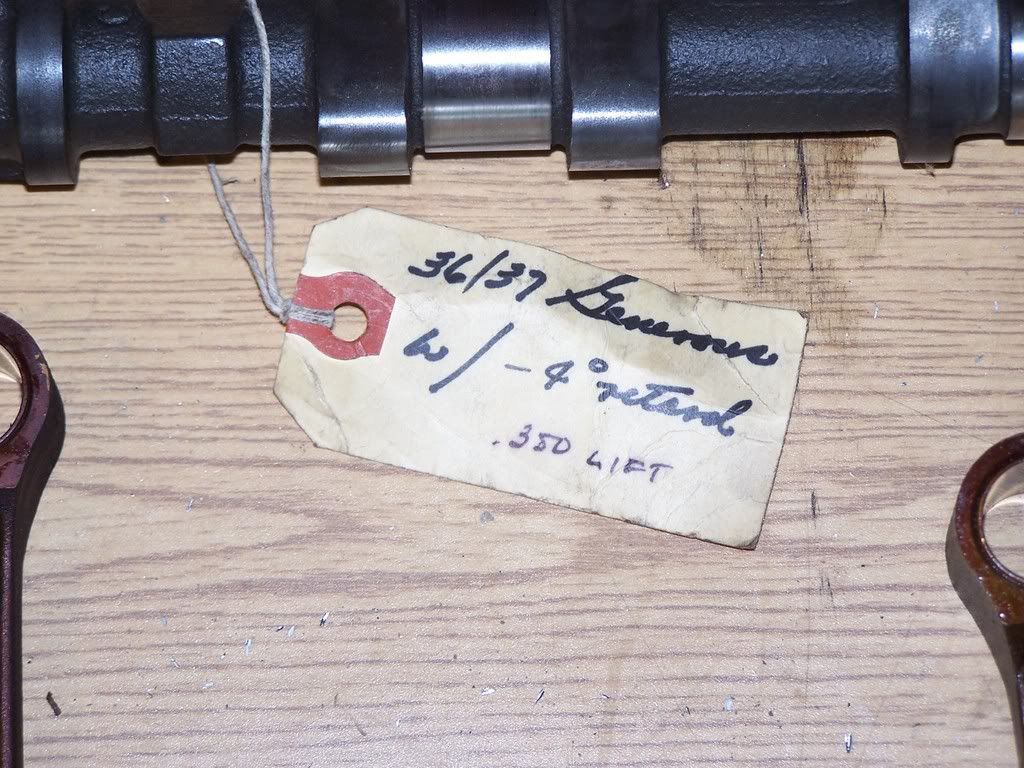

Trying a set of race cams I picked up off ebay. 237 duration .350 lift -4 degree timing
Hastings rings
Clevite bearings
Saturn high output coils

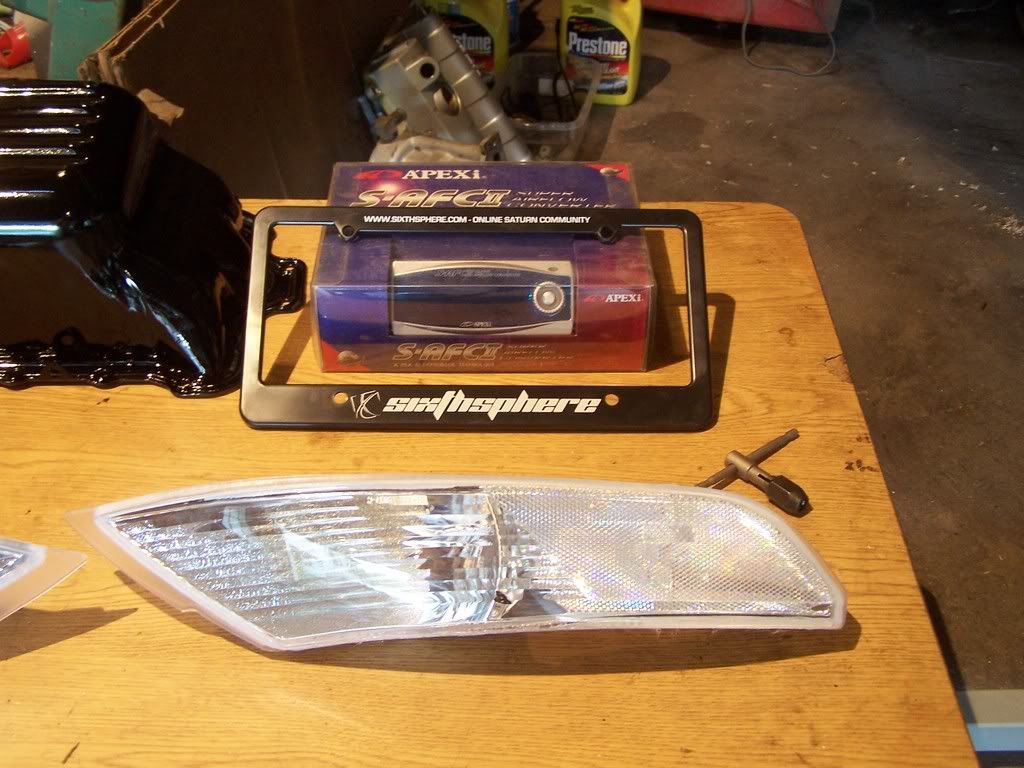

SAFC II
SPS Header
custom 2.25 exhaust(Need to use the new MIG welder)
Intrex drop springs
Clear corners

[johnny95sl2]

Re: johnny95sl2 summer fun

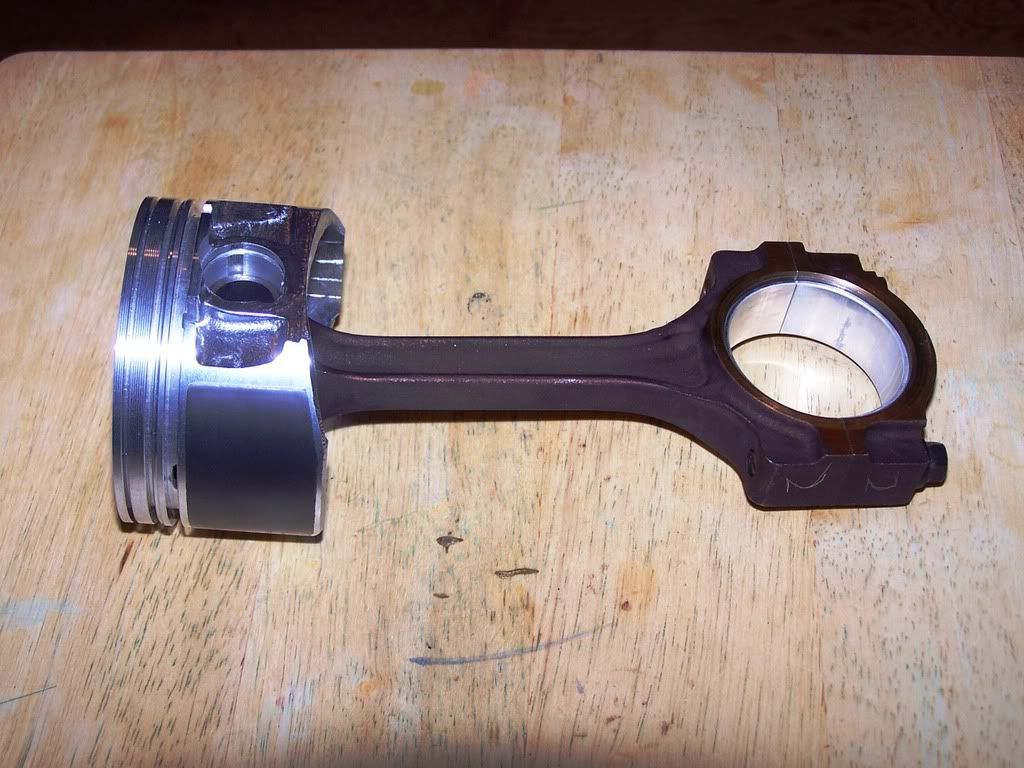

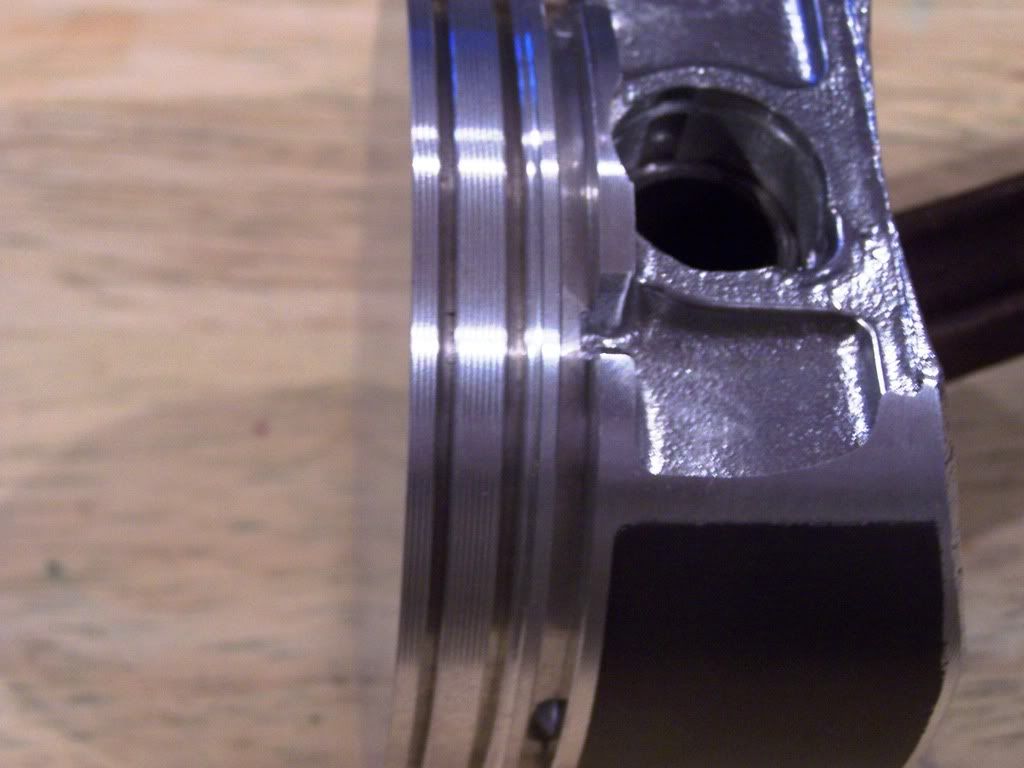

Pistons got here today. Thanks Tim for your great work. I'll get some pics of the rest of the parts this weekend.

[johnny95sl2]

Re: johnny95sl2 summer fun

Got the old engine and transmission out of the car last weekend.....thrown diff pin. Got to find another transmission... off to the junkyard.

Started putting the new motor together, all looks good.
Main oil clearance .0015
Rod oil clearance .001
Top ring gaps .014
mid ring gaps .016
oil ring gaps .018
Weight balanced the piston/rod assemblies within .01 grams of each other

I am going to do a rear disc conversion and a complete rebuild of ther front end.
new hard lines all the way from the MC. Dropping the sub frame tommorow to sandblast and paint. Going to try and drop out the rear sub frame and rebuild that while I got the car in the garage.

[johnny95sl2]

Re: johnny95sl2 summer fun

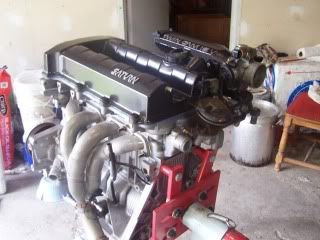

Been pretty busy getting the rest of the car ready. Dropped in the engine this weekend.

Static C.R of 13.0:1



Hole where she belongs

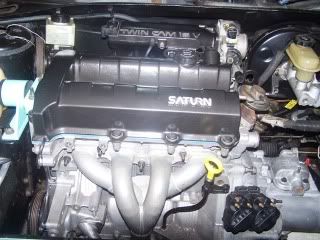

In the Hole

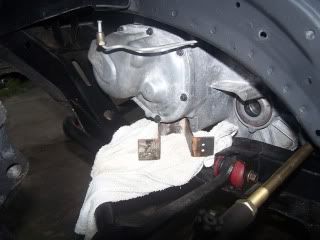

Pimped lower mount Ver. 2.0




This bitch may actually be running before the end of the summer

[GBRunner24]

Re: johnny95sl2 summer fun

Wow CR of 13.0:1, will the stock starter be able to turn that over?

and a SAFC II only to run the beast? Seems like a full standalone may be able to get you a little farther with such an in-depth build

either way it looks damn good and real clean [img]{SMILIES_PATH}/icon_thumbsup.gif[/img]

[johnny95sl2]

Re: johnny95sl2 summer fun

I have the crank pulley out getting the EDIS wheel installed. Next year I will be going megasquirt with spark.

[JRSTANGE]

Re: johnny95sl2 summer fun

very nice. look forward to when it's running.

[SL2Bob]

Re: johnny95sl2 summer fun

very nice. look forward to when it's running.

me too man, i wanna do a high comp build some day.

[punkboySL2]

Re: johnny95sl2 summer fun

damn man, that thing is gunna freakin' move for an NA saturn. Something like that could really benefit from a custom IM as well.

[johnny95sl2]

Re: johnny95sl2 summer fun

Well got the brakes all installed and bled. Finishing up all the little crap this weekend the on to the interior. Hoping to fire up on Monday. I'll get some pics up this weekend.

[JRSTANGE]

Re: johnny95sl2 summer fun

and some vids of it running also?

[johnny95sl2]

Re: johnny95sl2 summer fun

Videos also I'll let the kid take them while I ward off the fail....LOL

[johnny95sl2]

Re: johnny95sl2 summer fun

Update
It runs. I have some fueling issues I am trying to straighten out. Will only run with external power to fuel pump. Vids tommorow.

[johnny95sl2]

Re: johnny95sl2 summer fun

Got the fuel pump straightened out, broken ground wire in the trunk. Actually broken inside the insulation about 2 inches back from the ground buss bar.
Runs pretty good idle is a little rough and nearly dies when the throttle is released. Another issue is it seems the idle is hanging up between shifts. Possible IAC problem??

[punkboySL2]

Re: johnny95sl2 summer fun

That's a stock geo IAC for you. Mine is doing the same damn thing so I might try and just get a brand new one or use the saturn one I have and extend the wiring harness since it has to face in the wrong direction.
