Elvis's Quest to 300+WHP...Thread thing

[omgitselvisc]

List:

Engine (Internal) :

Blueprinted and balanced bottom end (to 9k rpm)
99+Heavier crank
All new speed pro main/rod bearings
New felpro head bolts
Saturn OEM gasket set
Scat rods with a .770 pin bore
8.8:1 c/r wiseco pistons, .020 over
SDA full port/polish head, decked .030 for a final c/r of 9.3-4:1
SDA street cams w/ lifter shims

And everything else thats OEM inside is brand new for the most part.

Trans:

MP3 with a new act 6 puck.

Nutsack monitoring:

Autometer oil pressure
Autometer water temp
Autometer boost/vacuum
Summit oil temp
14point7.com JAW wideband with datalogging

Fuel management:

HKS AIC with two 38lb/hr injectors for up to 250whp ish, bigger injectors if it will support more...

Turbo Gayness:

1G dsm manifold (35$ and fits perfect)
14b turbo to start with, then a 14b/GT30R hybrid later on
2.25" intercooler piping
Bar/Plate intercooler core, about a 22" long core
Blitz knock off BOV (its awesome quality)
Billet injector bosses (HAWTNESS)
Stainless fuel feed, then hardline (aluminum, none of that copper crap) to injectors
4 ply black couplers
4 ply intake system coupler
2.5" downpipe, 2.5" glasspack and undercar dump
Civic radiator mounted very durably, like a fucking tank
1700cfm slimfan


I probably missed a bunch of shit too. I have shit coming to the house left and right so I really don't even know whats going on right now.

Pics later.

Okay here's What I've done

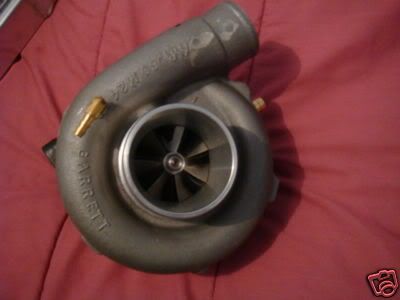

Replaced: Ebay T3/t4 Turbo with a REAL Garrett T3/60-1 Turbo (63 hot /60 compressor)

yay turbo



Replaced 38# Injectors with 62# injectors...yay EIC
Installed AEM Wideband


--------------------------------------------------------------------------------------------------

This is the plan

• Replace the stupid DSM Manifold with a Alphatuning.com Shorty Manifold + Downpipe (if mike's too busy then IAN said he could make me one)
  Called FSR and asked about Intake Manifolds, explained my timeframe and he said it's cool. So 3" Intake Manifold it is.
  T3/60-1 Will Stay.
  Replace the stupid HKS Ebay Knock-off
  MegaSquirt II will be built w/ a megaview.
  Eventually I'll put in the EDIS-4 Ign System but for now i'll put in the OBD-1 Ign Module.
  Walbro 255 High-Pressure In-Tank Fuel Pump
  Boost is now dropped to 8psi.
  Need to Call FSR about Turbo Cams, but I need to find stock cams first.
  Get a New ACT 6Puck Clutch + Pressure Plate.
  Fix the damn Oil Leak.
  Mount Radiator CORRECTLY, the radiator is angled weird and it was epoxy'd to the intercooler [img]{SMILIES_PATH}/confused.gif[/img] , it overheats and i need to have the fan on.
  Hood-Scoop (Sprint Style)
  Actually put an exhaust on once I get the manifold and downpipe.

I've budgeted all of this with http://www.mint.com it's a GREAT tool. I've had problems with overdrafting wayyyy too much.

Help will be from http://www.sixthsphere.com and plastikracing.

Reason: Well after seeing how my car was sold and then stripped for profit, I want to build this car correctly and hit my goal of 300WHP. If I can squeeze more HP out then I will. But It's going to be small steps. And to prove that I am capable of doing this.

Hopefully done by: October 08 or never lol

[JRSTANGE]

Re: Elvis's Quest to 300+WHP...Thread thing

you can dooooit!

[PlasticPower8500]

Re: Elvis's Quest to 300+WHP...Thread thing

Yup, you should be able to pull it off.

[KiltedDemon94]

Re: Elvis's Quest to 300+WHP...Thread thing

ill get the cams and switch tomorrow morning.....cool call me when you can

[PROTOTYPE]

Re: Elvis's Quest to 300+WHP...Thread thing

Elvic give me a call tomorrow at work and Ill put you on the phone with mike if you dont have his number. He is doing mock up on another kit he is building and will be starting mine soon.

[GreenMachine]

Re: Elvis's Quest to 300+WHP...Thread thing

Dude you gotta let me know when all of this is goin together or when you take it to the dyno...i think i might have to make the drive!

[omgitselvisc]

Re: Elvis's Quest to 300+WHP...Thread thing

Shopping List

• Turbosmart Race Port Blow Off Valve - $230
  http://www.turbosmartonline.com/index.php?id=115
  http://www.maperformance.com/store/prod ... ctid=18514

  Tial V44 Wastegate - $370 (+/-)
  http://www.extremeturbosystems.com/prod ... cts_id=221

  2.5 " Universal Aluminum Black Piping Kit, Powder Coated X2 - $278
  http://www.cxracing.com/mm5/merchant.mv ... de=PIPK250

  Del Sol Aluminum Radiator $149 (One on there is leaking due to poor installation of fan)
  http://www.cxracing.com/mm5/merchant.mv ... _Code=RDHO

  LS1 Throttle Body - $$?!
  http://www.ebay.com

  FSR Intake Manifold - $400?(+/-)
  http://www.fsrmotorsports.com

  Turbo Header - $?!?!
  Either: FSR, AlphaTuning, or [img]{SMILIES_PATH}/icon_ninja.gif[/img] Member

  MegaSquirt II v3.0 board
  http://www.diyautotune.com/catalog/mega ... f3b70c226b

  Megasquirt Harness - $65
  http://www.diyautotune.com/catalog/1239 ... f3b70c226b

  60# Injectors - $235
  http://cgi.ebay.com/ebaymotors/Siemens- ... otohosting

  Greddy Profec B Spec II Boost Controller $250
  http://search.ebay.com/search/search.dl ... category0=


-------------------------------------------------------------------------------------------------
Total: ~$2500(+/-)

[d3ad1ysp0rk]

Re: Elvis's Quest to 300+WHP...Thread thing

I've heard of people running 35+psi on the 38mm (not Saturns, but bigger turbos), you'll be fine (and it costs less!) with the 38mm [img]{SMILIES_PATH}/smile.gif[/img]

Is that del sol radiator the one everyone uses? If so, might want to double check that the location of the coolant inlet/outlet won't interfere with where the downpipe and hot side piping runs and such

[omgitselvisc]

Re: Elvis's Quest to 300+WHP...Thread thing

[quote="d3ad1ysp0rk"]I've heard of people running 35+psi on the 38mm (not Saturns, but bigger turbos), you'll be fine (and it costs less!) with the 38mm

[KiltedDemon94]

Re: Elvis's Quest to 300+WHP...Thread thing

ive got a civic rad and if you are wanting to get an all aluminum rad get the jegs universal or spend the monies and get a fluidyne or becool cuz with the civic one you arent goin to have much room to work with

[Pimped_SC2]

Re: Elvis's Quest to 300+WHP...Thread thing

Use the TB off of a GM 4.3/5.0/5.7. they have a 3" plate and the sensors plug up to our harnesses.

[KiltedDemon94]

Re: Elvis's Quest to 300+WHP...Thread thing

i think he was goin with the LS7 billet tb....97 or 102mm straight through tb

[omgitselvisc]

Re: Elvis's Quest to 300+WHP...Thread thing

Use the TB off of a GM 4.3/5.0/5.7. they have a 3" plate and the sensors plug up to our harnesses.

http://i26.photobucket.com/albums/c135/ ... 1Large.jpg

sweet deal. Thanks for the tip.

My concern is the radiator, this is what i've done to keep the fucking car from overheating

Removed: Thermostat, Fan on all the time, and the heat blasting too. But it still goes 3/4 up :rawr:

I need to know if i should get a stock radiator or what?

I'll post pics of the poorly mounted Radiator.

[KiltedDemon94]

Re: Elvis's Quest to 300+WHP...Thread thing

im telling ya elvis get a jegs universal one and find someone to take the cap off and weld closed

[omgitselvisc]

Re: Elvis's Quest to 300+WHP...Thread thing

im telling ya elvis get a jegs universal one and find someone to take the cap off and weld closed

like this?

http://www.jegs.com/p/Be+Cool+Radiators/953883/10002/-1

Which dimensions?
