  • Justin's Turbo Failure

    DISCUSSION THREAD: http://www.sixthsphere.com/phpBB3/vi...p?f=61&t=30473

    Car: 99 SL2, power windows/locks, 9 bolt head w/horizontal IM.

    Goal: 200whp.

    Build Date: All of April, 2008

    Parts Purchased:
    Turbo Specific;
    New Garrett T3/T4 - $400
    ebay special intercooler - $90
    ebay special i/c piping/couplers/clamps (may buy tbolt clamps before install) - $100
    HKS AIC - $100

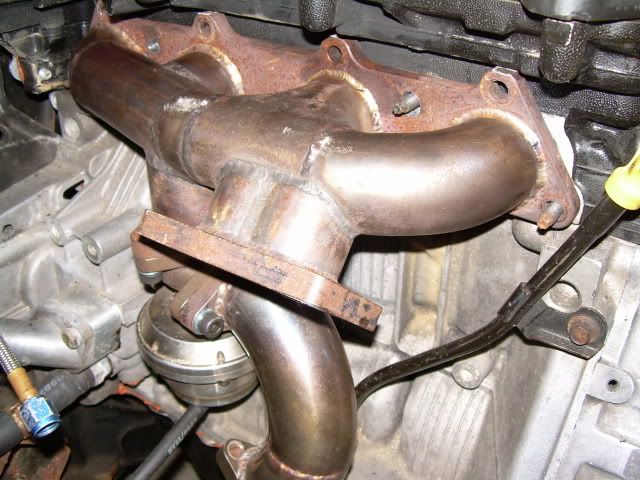

    Alphatuning a/c saver log manifold - $350
    Alphatuning 3" downpipe - $250
    TiAL 38mm wastegate w/7lb spring - $220
    Synapse BOV - $200
    AEM wideband w/sensor - $120
    Oil lines w/fittings - $45
    (2) 42lb injectors in new aluminum bungs - $120
    Stainless -4AN line w/fittings for fuel - $60
    Misc bolts/nuts/washers/lines/etc from home depot - $75

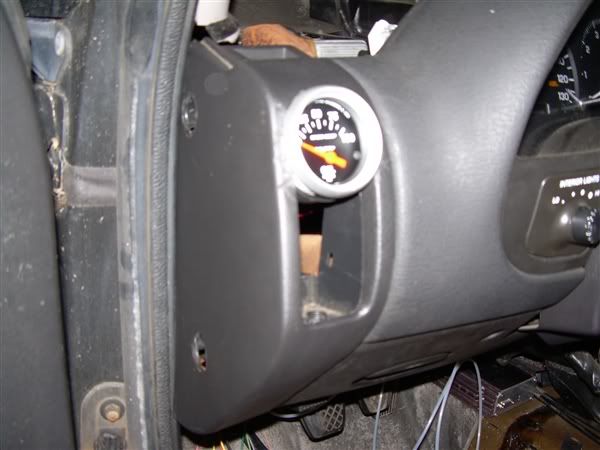

    Boost Gauge - $60
    Welding (oil pan, injectors, bov) - $100
    3" Cat - $80
    3" Magnaflow Resonator - $100
    Exhaust V-Band - $45
    Welding & Hangers (exhaust) - $140

    Misc;
    Slim Fan - $130
    Fluidyne Radiator - $330
    Agility Coilovers - $945
    Hawk HPS pads - $60
    Blank Rotors - $20
    Stainless braided brake lines - $55
    Energy Poly bushing set - $90
    - Justin [s]99 Blue SL2 - T3/T4 14psi[/s] (dead)


    FS: Pimped lower trans mount, TiAL 38mm Wastegate, Gauge Cluster, Oil Drain

  • #2
    Re: Justin's Turbo Failure











    lol Too lazy to unpack and repack the radiator.
    - Justin [s]99 Blue SL2 - T3/T4 14psi[/s] (dead)


    FS: Pimped lower trans mount, TiAL 38mm Wastegate, Gauge Cluster, Oil Drain

    Comment


    • #3
      Re: Justin's Turbo Failure

      looking nice!

      Comment


      • #4
        Re: Justin's Turbo Failure

        Wow nice [img]{SMILIES_PATH}/biggrin.gif[/img]
        Why do I have a feeling I'll have the slowest DOHC turbo saturn forever? lol
        2000 SL2 5 speed, boosted, meth injected, parted out...268whp & 254wtq (stock pump maxed out)..

        Comment


        • #5
          Re: Justin's Turbo Failure

          you need new O-rings for the injectors homie.

          Comment


          • #6
            Re: Justin's Turbo Failure

            how much to anticipate the overall cost of your setup to be?
            [color=red]-Tyler[/color]<br /><br />2005 Chevy Trailblazer<br />1999 Saturn SL2<br />2002 Suzuki Bandit 1200

            Comment


            • #7
              Re: Justin's Turbo Failure

              Originally posted by sl2fast
              how much to anticipate the overall cost of your setup to be?
              The list alone (just added prices of things I bought. Guessed on a few I don't remember anymore, or haven't bought) totals just under $3,000. I still am planning on buying an ACT 6 puck and a Quaffie though, so that will make it a lot more. I'll need to buy sticky tires as well.

              But in regards to the bare necessities, $3,000.
              - Justin [s]99 Blue SL2 - T3/T4 14psi[/s] (dead)


              FS: Pimped lower trans mount, TiAL 38mm Wastegate, Gauge Cluster, Oil Drain

              Comment


              • #8
                Re: Justin's Turbo Failure

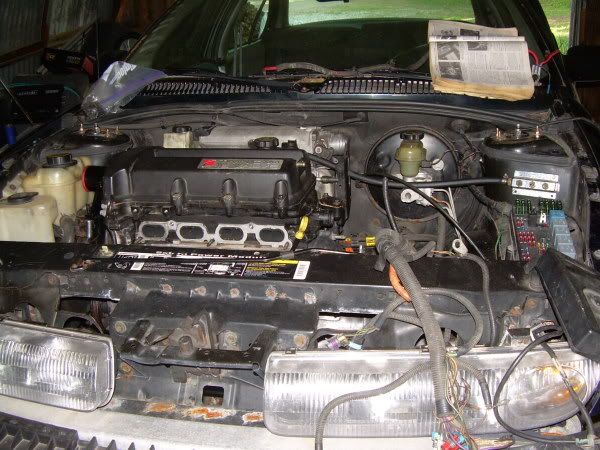

                Progress? Meh, I call BS on myself. It's only an hours worth of work, but it's proof that I am actually doing SOMETHING!




                Bye bye AIR System!


                Soon to be turbo?


                Daily Driver til the build is done (Apollo)


                128whp!!! lol


                I sound like a Civic [img]{SMILIES_PATH}/sad.gif[/img]

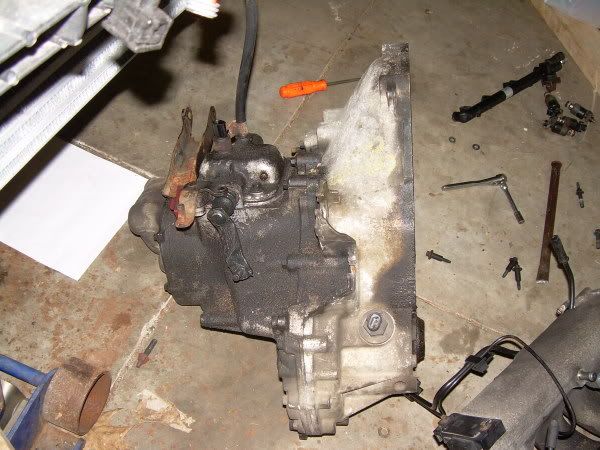

                Parts Car


                No need for this anymore (Someone already has dibs, so don't PM me! haha)


                Yeah, screw you exhaust manifold!
                - Justin [s]99 Blue SL2 - T3/T4 14psi[/s] (dead)


                FS: Pimped lower trans mount, TiAL 38mm Wastegate, Gauge Cluster, Oil Drain

                Comment


                • #9
                  Re: Justin's Turbo Failure

                  Spent a good portion of the day working on it, running to home depot twice for bolts (lol wrong pitch).

                  So.. I took the A/C out. I love it.. but the condenser was fucked beyond repair, and the parts store didn't carry them, so I'm going to run without it.


                  Fluidyne FTW! [img]{SMILIES_PATH}/smile.gif[/img]

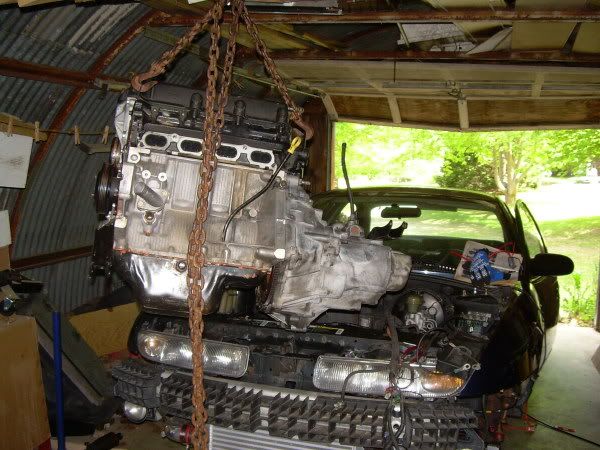

                  Starting to remove my cross member...




                  Rear discs as soon as my energy suspension bushings come in (ordered them today when I saw the condition of the existing bushings..). Ordered some hawk HPS' for the front as well (back already has ebc greens)

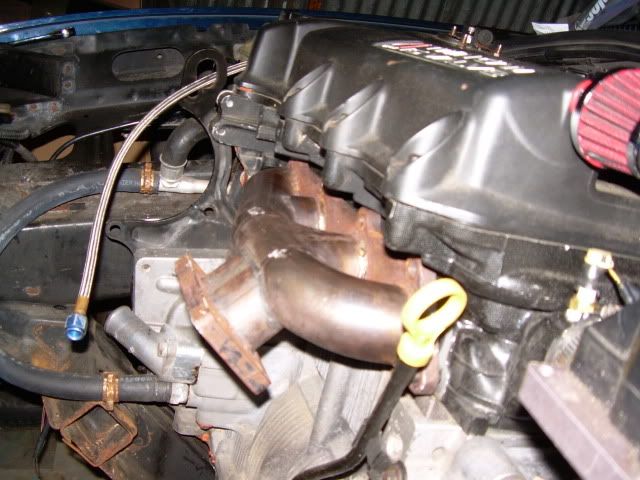

                  I also removed the entire exhaust and clocked the turbo.

                  Still not sure how I'm going to run the intercooler piping.. oh well, I'll figure it out.
                  - Justin [s]99 Blue SL2 - T3/T4 14psi[/s] (dead)


                  FS: Pimped lower trans mount, TiAL 38mm Wastegate, Gauge Cluster, Oil Drain

                  Comment


                  • #10
                    Re: Justin's Turbo Failure





                    Goal is still Bonny Eagle. Praying for no big issues. [img]{SMILIES_PATH}/smile.gif[/img]
                    - Justin [s]99 Blue SL2 - T3/T4 14psi[/s] (dead)


                    FS: Pimped lower trans mount, TiAL 38mm Wastegate, Gauge Cluster, Oil Drain

                    Comment


                    • #11
                      Re: Justin's Turbo Failure

                      looking very nice!

                      Comment


                      • #12
                        Re: Justin's Turbo Failure

                        Slow and steady wins the race? lol..















                        Loudest Saturn north of Mass? [img]{SMILIES_PATH}/lol.gif[/img]
                        - Justin [s]99 Blue SL2 - T3/T4 14psi[/s] (dead)


                        FS: Pimped lower trans mount, TiAL 38mm Wastegate, Gauge Cluster, Oil Drain

                        Comment


                        • #13
                          Re: Justin's Turbo Failure

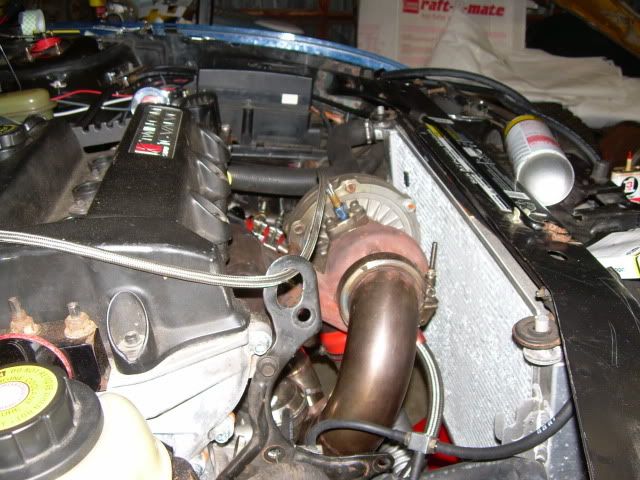

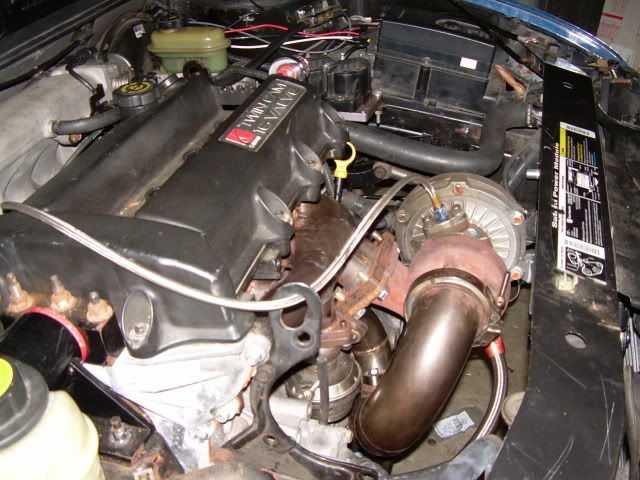

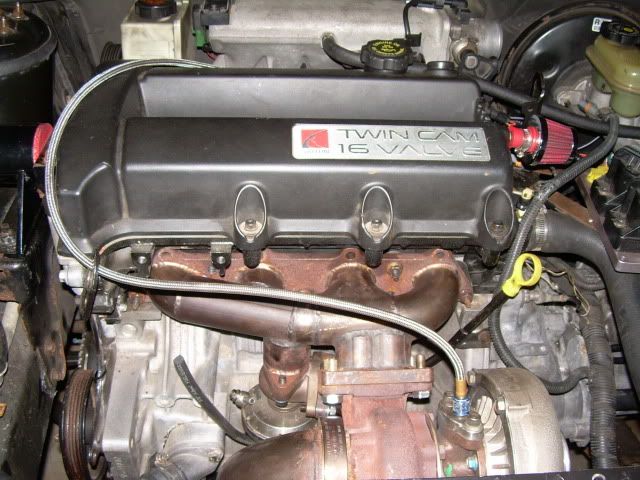

                          "Finished" the car. Meaning, it's boosting.

                          4psi for now, until I get the manual boost controller and my new V-Band clamp (broke the stud on the other by over-tightening it trying to seal flanges that are likely warped).

                          I'll likely get some better pictures whenever I get a chance to have a shoot with someone.
                          - Justin [s]99 Blue SL2 - T3/T4 14psi[/s] (dead)


                          FS: Pimped lower trans mount, TiAL 38mm Wastegate, Gauge Cluster, Oil Drain

                          Comment


                          • #14
                            Re: Justin's Turbo Failure

                            Well, this kind of went to shit in terms of keeping everyone updated (that doesn't speak to me directly).

                            Cliffs;

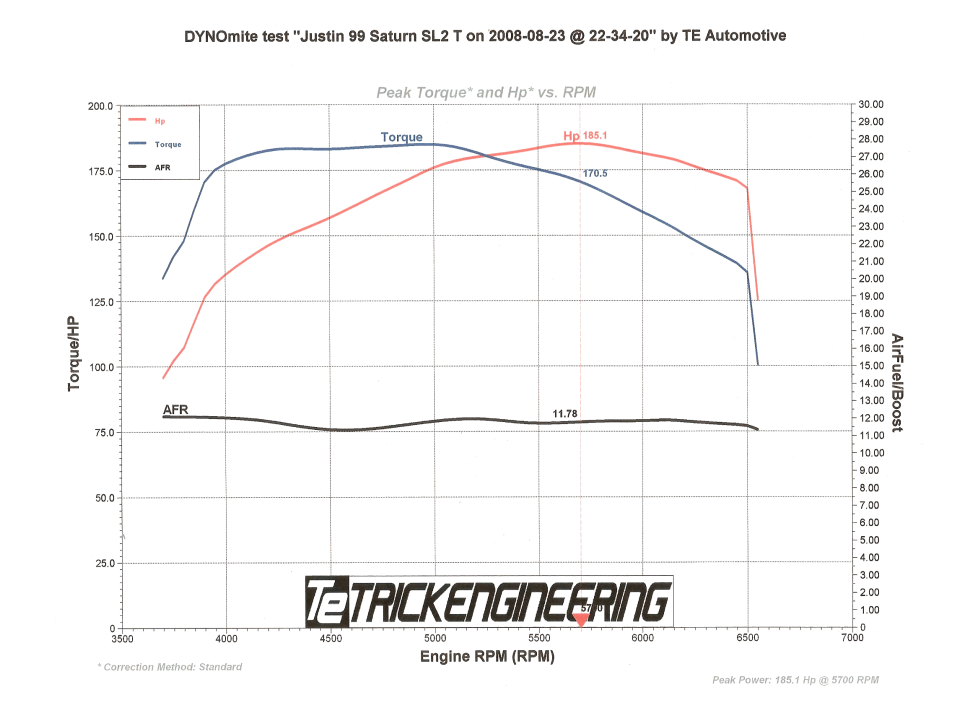

                            - Car ran well all summer, ended up peaking at around ~8psi and resulted in the dyno below.
                            - Took the car to the dragon, ran great minus a few popped couplers (BUY TBOLTS THE FIRST TIME!!), and a nut that wasn't torqued tight enough.
                            - Blew the car up in late september or early october if I remember correctly. Never tore the motor down so I'm not positive, but the AFRs were perfect, so I'd say just detonation due to excess heat/fucked up timing.
                            - Bought a forged motor(ross pistons, crower rods, qksl2 turbo cams) from Hellix.
                            - Bought a Electromotive Tec GT from ricesucks!!\



                            8psi on a 9 bolt motor with 185k miles

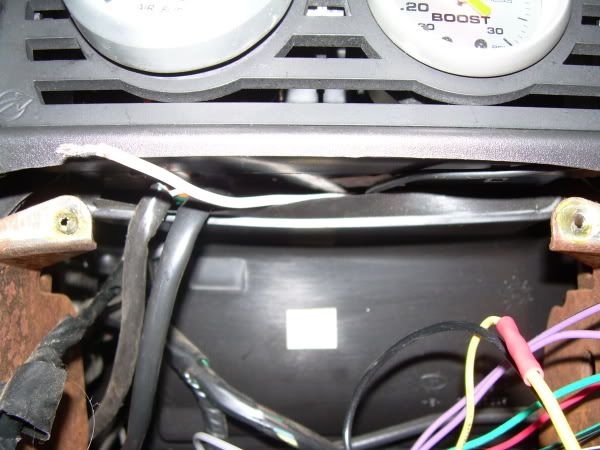

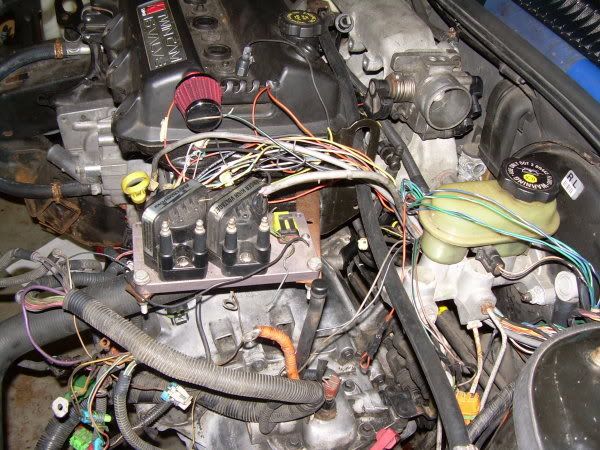

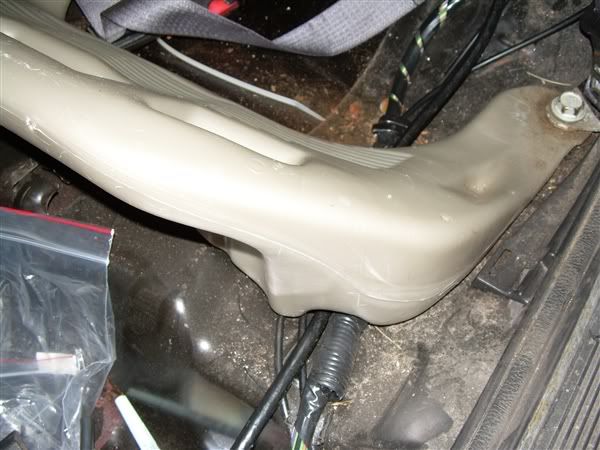

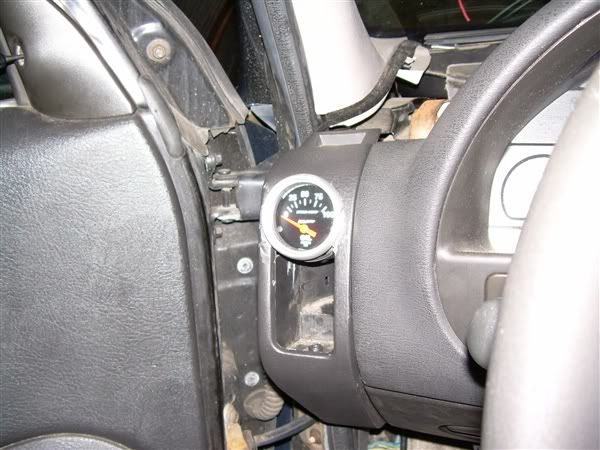

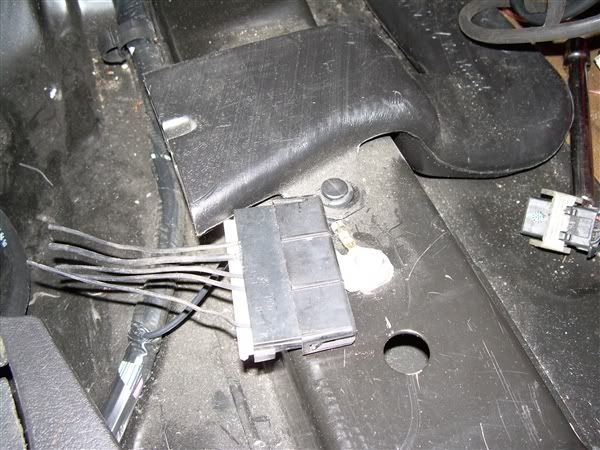

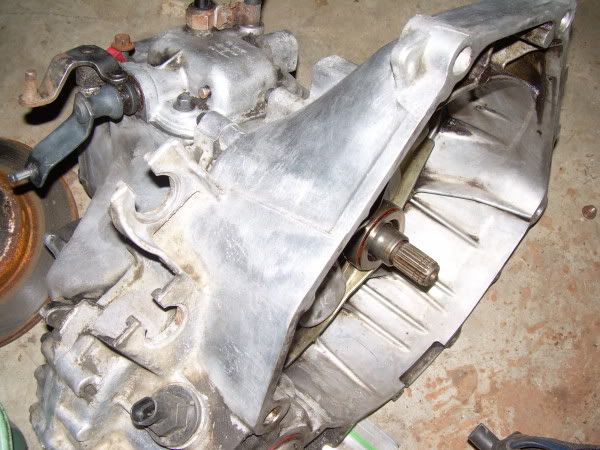

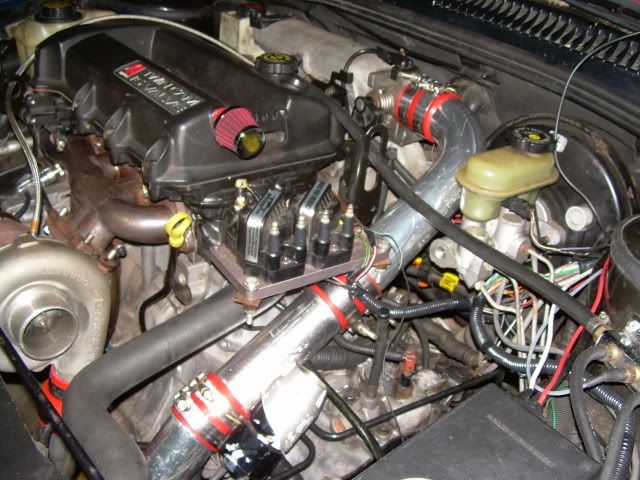

                            Image dump from 2009


































































                            - Justin [s]99 Blue SL2 - T3/T4 14psi[/s] (dead)


                            FS: Pimped lower trans mount, TiAL 38mm Wastegate, Gauge Cluster, Oil Drain

                            Comment


                            • #15
                              Re: Justin's Turbo Failure

                              So you got the tec gt? Bastard.
