  • jts749's sc2 +turbo

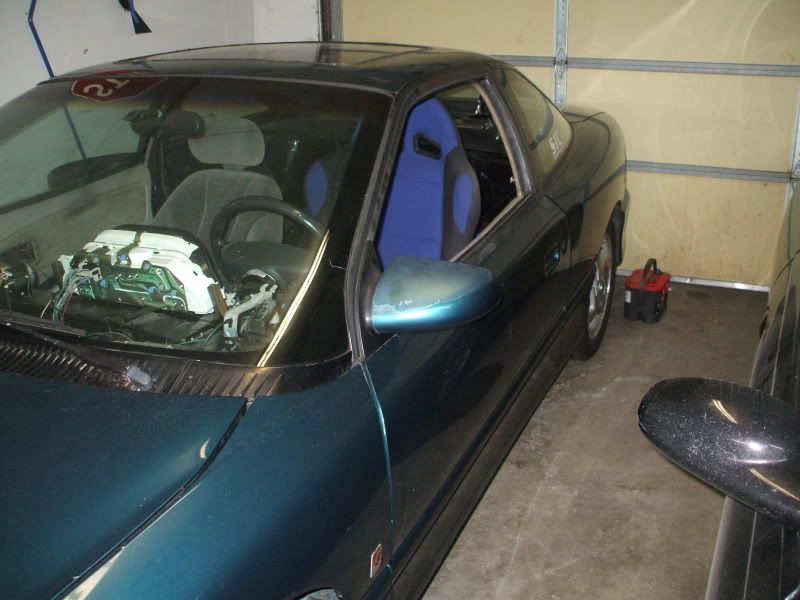

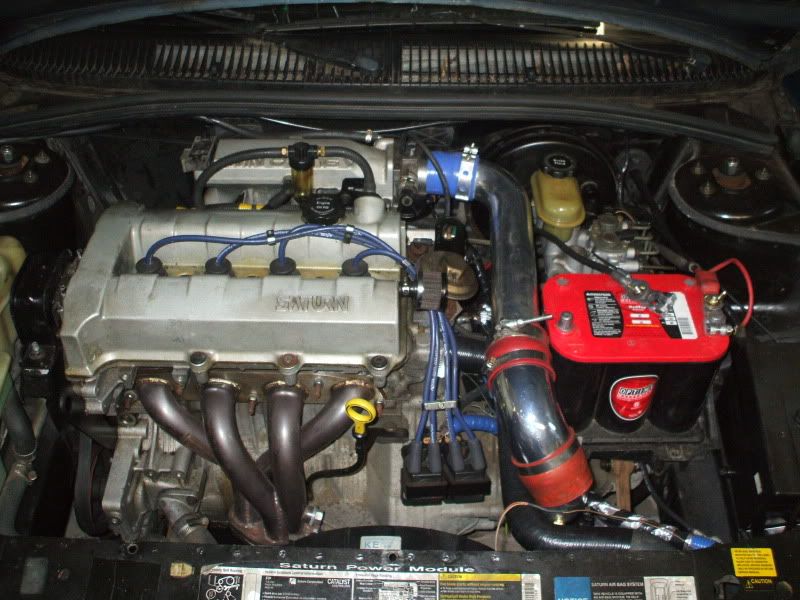

    this is the car

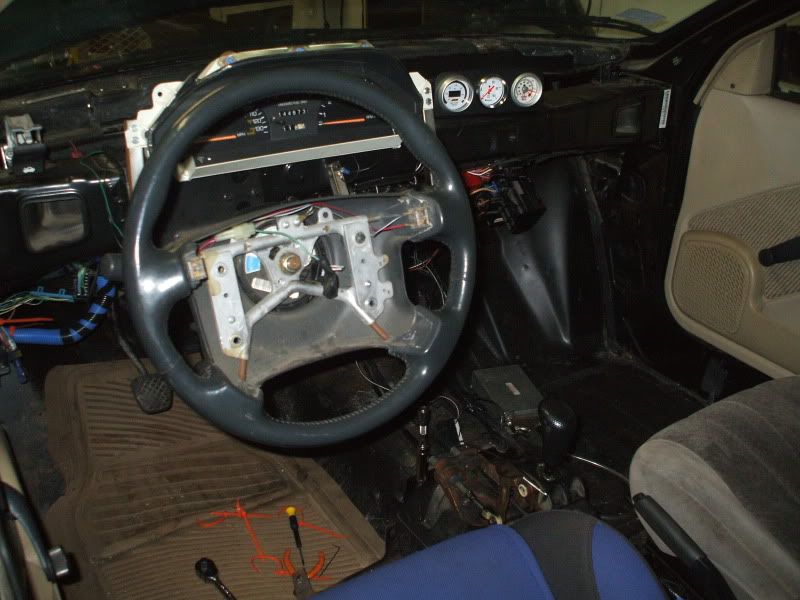

    mostly stock with a shit ton of useless crap removed
    and an ms2v3 running the entire car(well everything that remains lol)




    some of the turbo parts....

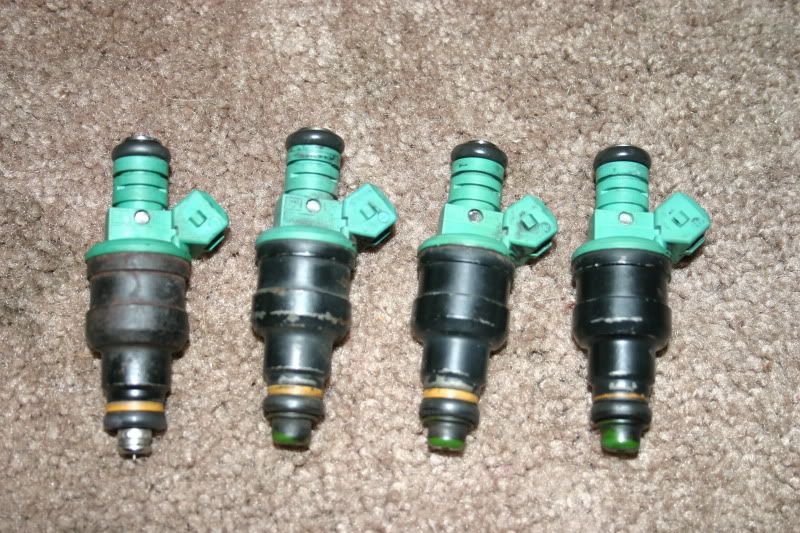

    32lb volvo injectors

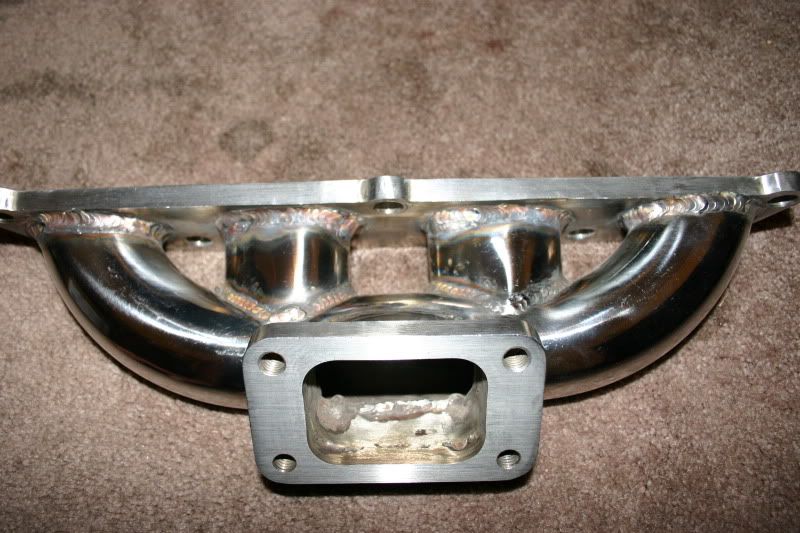

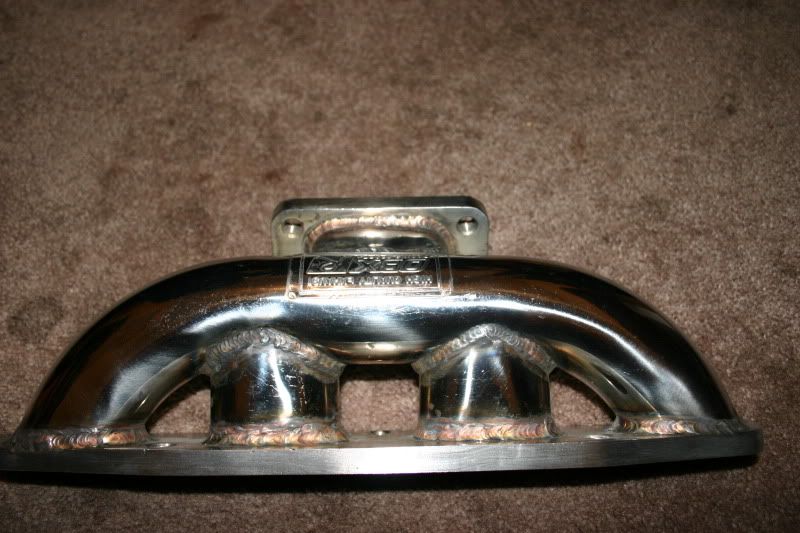

    obx turbo manifold

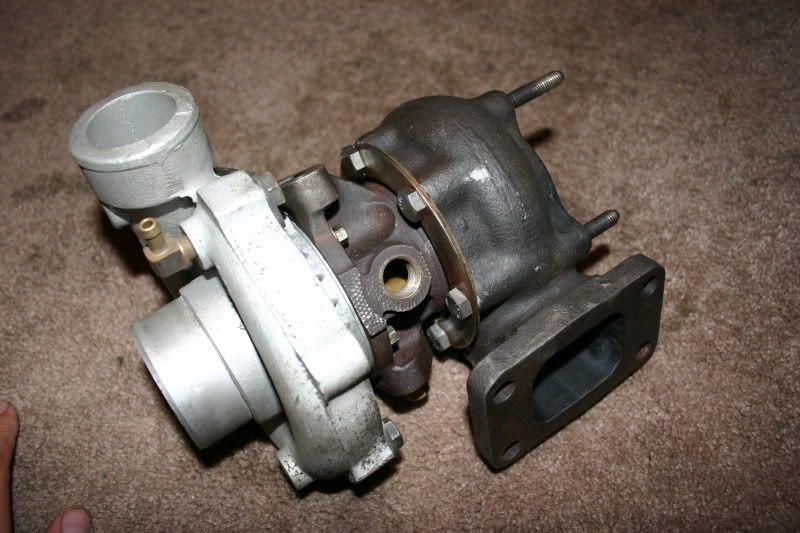

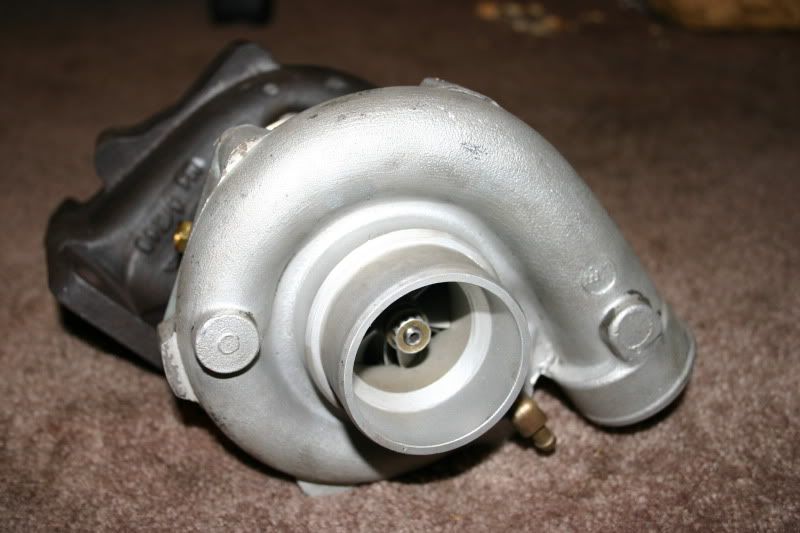

    Saab t3

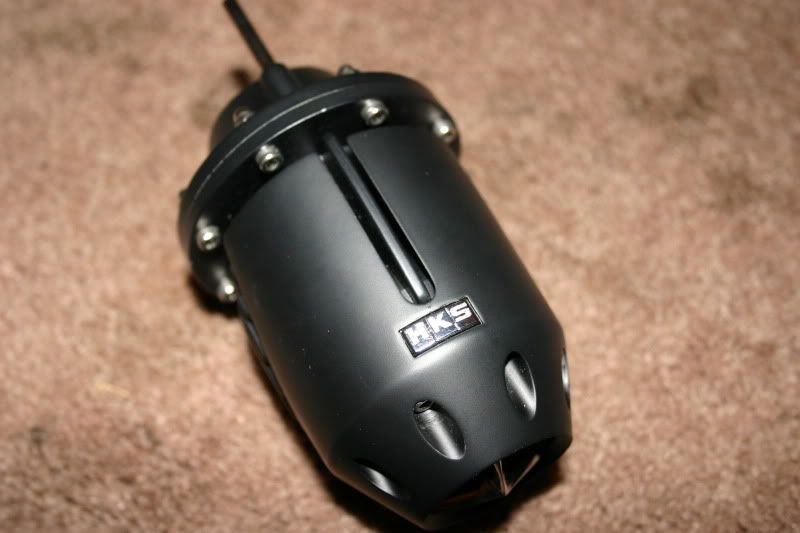

    HKS blow off valve

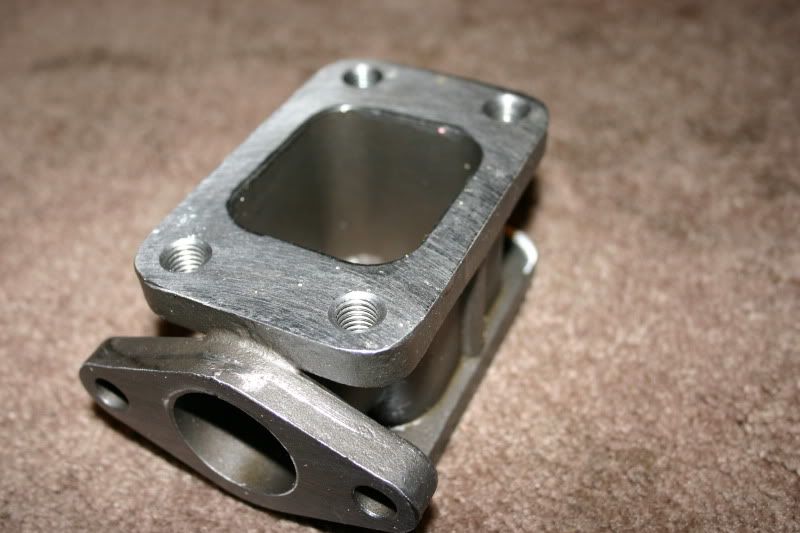

    i dont know if this will fit or not
    Last edited by jts749; 11-02-2010, 08:08 PM.

  • #2
    Re: jts749's sc2 +turbo

    intercooler mounted....



    and covered.....

    Comment


    • #3
      Re: jts749's sc2 +turbo

      it won't fit. obx and the wastegate adapter with the turbo pushes it to far out and it g into the radiotor. i am using an obx. i cut a hole over port one and weld the flange that comes with the wastegate. mine is still sitting in my garage

      Comment


      • #4
        Re: jts749's sc2 +turbo

        here is one with the wastegate on and down pipe

        Comment


        • #5
          Re: jts749's sc2 +turbo

          i will be mounting my turbo backwards of what yours is

          Comment


          • #6
            Re: jts749's sc2 +turbo

            the turbo will hit the block

            Comment


            • #7
              Re: jts749's sc2 +turbo

              wait i took a sec look at your turbo and you are using a smaller turbo then i am so it might fit

              Comment


              • #8
                Re: jts749's sc2 +turbo

                you were right, it barely hits
                like 5mm from fitting

                well looks like ill be running internal wastegate for a while


                and it probaby is smaller, im not going for a whole lot of power here. Its a garrett t3 .48 turbine .42 compressor from a saab

                Comment


                • #9
                  Re: jts749's sc2 +turbo

                  you don't know anyone that can weld the wastegate flange onto the manifold?

                  Comment


                  • #10
                    Re: jts749's sc2 +turbo

                    well ive got a tig welder, but not alot of practice
                    i guess i could give it a try, ill have to go out and buy some stainless tig rods

                    Comment


                    • #11
                      Re: jts749's sc2 +turbo

                      think this will help direct air into the intercooler?



                      welded pipe into oil pan



                      Comment


                      • #12
                        Re: jts749's sc2 +turbo

                        good

                        Comment


                        • #13
                          Re: jts749's sc2 +turbo

                          You aren't going to need to worry about the intercooler getting cold air. It's now blocking your radiator. I would worry about directing air to it. Other than that, it's looking pretty good man. Keep with the updating.

                          James
                          sigpic
                          Click these links for my many projects
                          Shaved, Boosted, Purple Race Car
                          '64 C10 Build Officially LQ/NV3500 Swapped and Bagged
                          Soon to be bagged, LS Powered, '62 Impala

                          Comment


                          • #14
                            Re: jts749's sc2 +turbo

                            looking pretty good. Keep going.

                            Comment


                            • #15
                              Re: jts749's sc2 +turbo

                              Originally posted by TypeSL2
                              You aren't going to need to worry about the intercooler getting cold air. It's now blocking your radiator. I would worry about directing air to it. Other than that, it's looking pretty good man. Keep with the updating.

                              James
                              its a tube & fin so it shouldnt block airflow too much, plus the car runs really cold all the time
