Wiring, Again

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Wiring, Again

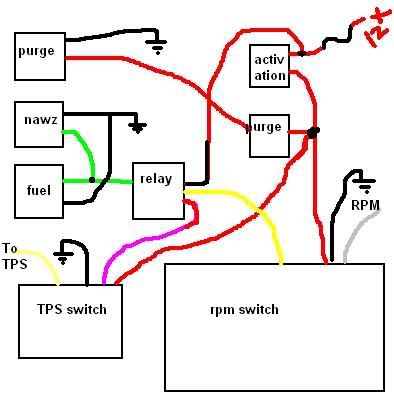

    Jeremy drew up this "diagram" a while back,

    just wondering which poles on the relay the wires splice into.

    like 87,30, etc...



  • #2
    we have a Tech Article that explains relays here:

    http://www.sixthsphere.com/forum2/viewtopic.php?t=9527
    [img width=600 height=150]http://www.sixthsphere.com/storage2/images/wejag665buljx09mu77e.jpg[/img]<br />99SL2 w/97SC2M Engine/Trans Swap, CAI, 2.25 Custom Exhaust

    Comment


    • #3
      Whipped Cream Nawz needs no wiring FTW22111/
      -6S Resident Mechanical Forensics member #001.
      1995 SC2 Turbo 3.6L DOHC, 6sp manual, Ford 8.8 rearend running on MS3x.
      1998 F-250 5.4L triton...stock.

      Comment


      • #4
        well my fuel doesnt need whipped cream in it either
        [quote author="triman54 on s2ki.com, May 16 2008, 04:02 PM"] A Saturn is like a box of chocolates... [/quote]<br /><br />2007 Central Florida Region East Coast Champion STS<br />2007 CFR West Coast Champion STS<br /><br />

        Comment


        • #5
          Originally posted by ProjectSW1
          we have a Tech Article that explains relays here:

          http://www.sixthsphere.com/forum2/viewtopic.php?t=9527

          im confused

          Comment


          • #6
            bump?

            Comment


            • #7
              ok, i did the above wiring minus the purge setup...when it came to wiring things to the relay, i wired the activation switch to 30, which i know is right...everything else i just guessed on

              now, when i turn on the system my window switch comes on, i set the on point for the circuit at 0 RPM's so i can caliber my TPS switch...however, my TPS switch doesnt seem to be getting power....

              did i wire a relay wrong? the window swtich is hooked up to the number 85 or 86...its the one on the right if you have the relay turned upside right

              Comment


              • #8
                Flip the relay over, it should give you the numbers. Also look on the side of the relay, it should tell you how it set up (Wether it be NO or NC). Recheck and then get back to it.
                2002 Saturn SL1- 5 speed, basic, slow, and staying that way.
                1993 Lexus SC300- Project turning into gold...

                Formerly knows as "Saturntuner05."
                Too many past turds to list.

                Comment


                • #9
                  the switches go on the 85 and 86 pins...

                  the big power item goes on 87

                  direct power goes to 30

                  when you throw the switch the 85 and 86 coils energizes... tranfers the power of the 30 pin into the 87 pin

                  [img width=600 height=150]http://www.sixthsphere.com/storage2/images/wejag665buljx09mu77e.jpg[/img]<br />99SL2 w/97SC2M Engine/Trans Swap, CAI, 2.25 Custom Exhaust

                  Comment


                  • #10
                    i appreciate it guys, but i just ditched the TPS since it wasnt workin for w/e reason. I still dont understand how relays work, ya know? I know their function and all but dont get how the opereate. I will research it futher

                    Anywho, I've ditched the TSP and am now just using the uber gay micro switch in conjuction with the MSD Window Switch....

                    Now I'm just waiting on the RIGHT fuel line and fitting...sheesh

                    Comment


                    • #11
                      Check this out:



                      Does that help?
                      [img width=600 height=150]http://www.sixthsphere.com/storage2/images/wejag665buljx09mu77e.jpg[/img]<br />99SL2 w/97SC2M Engine/Trans Swap, CAI, 2.25 Custom Exhaust

                      Comment


                      • #12
                        the light bulb represents mad NAAAWWWWZZZZZ being pumped into ur system
                        [quote author="triman54 on s2ki.com, May 16 2008, 04:02 PM"] A Saturn is like a box of chocolates... [/quote]<br /><br />2007 Central Florida Region East Coast Champion STS<br />2007 CFR West Coast Champion STS<br /><br />

                        Comment


                        • #13
                          ok ok, so essentially...when I flick on my activation switch, it turns on the MSD Window switch...and when that reaches the desired RPM, it grounds the realay thus sending power to the tps, and when the tps is at WOT, it grounds the solenoids thus activating them? something like that

                          im a visual learner, thanks!

                          Comment


                          • #14
                            almost

                            it's a chain is more like it, at least teh way I have mine wired, which is probably how Jeremy wrote up how to do yours

                            in your chain you've got your main arming first, then you've got your WOT or TPS on the hot side (85) of the relay switch portion, and your MSD Window Switch is going to give and take your ground of the relay itself (86).

                            you go wide open and the WOT or TPS completes it's end and sends positive to the relay at 85. then as you reach your RPM the ground is sent to the relay at 86. at that point, the relay kicks over and completes the main circuit, and sends positive to the solenoids, which you already have grounded over where they're mounted with the one out of each pair off of each one.

                            I forgoet if TPS works with ground, so if it does, then you always have the hot side/positive going to 85 when armed, and you just have two breaks to link on the ground (RPM switch and TPS), but the basic idea is the same.
                            -Vinny

                            Comment


                            • #15
                              Principle= Magnetism. Got it? lol. But yeah good diagram Brian.
                              2002 Saturn SL1- 5 speed, basic, slow, and staying that way.
                              1993 Lexus SC300- Project turning into gold...

                              Formerly knows as "Saturntuner05."
                              Too many past turds to list.

                              Comment
