  • Door panels

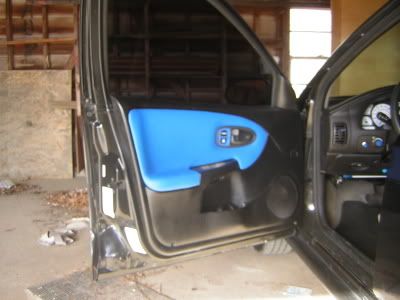

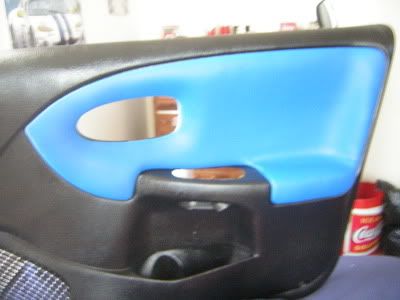

    Doors are now black and panels obviously changed too...

    Still on the look out for a carpet and set of seats and seatbelts to complete my work!

    Tell me what you think




  • #2
    How did you do that?
    Got a new baby <img src="{SMILIES_PATH}/smile.gif" alt="" title="Smile" /> - 2006 Ion Redline Stage 2<br /><br />Old baby :<br />--My ride : http&#58;//www&#46;cardomain&#46;com/ride/405827

    Comment


    • #3
      lots of anger and time.... [img]{SMILIES_PATH}/lol.gif[/img]

      Comment


      • #4
        ain't those plastic rivets a BITCH??? that's the hardest part, is getting the fabric panels off. they use these plastic rivets, which they then melt into place, so you have to cut/break/pry/drill them out to remove the fabric section from the rest of the door. then you have to figure out how to re-attach them... which i'm curious about. i used liquid nails because i'm lazy. what'd you do?
        -Kevin<br /><br />&quot;Ha ha HA! Mine is an evil laugh...now die!&quot;<br /><br />

        Comment


        • #5
          OK I have my door panels off and the did the plastic rivit thing But I am having a hard time recovering the plastic. I am atempting to cover them with marine vynle but It isn't working to well.

          What kind of material did you use?

          What adhesive did you use?


          BTW it looks sweet. [img]{SMILIES_PATH}/smile.gif[/img]

          Comment


          • #6
            Yea i just poked a small screw driver in the back of the holes and pryed them out...it took a while but it worked. after i recovered them i used a hot glue gon to make new "rivets" at first i didnt apply enough pressure and it looked bad, so i had to rip those out. after redoing it it looks better.

            I'm not sure what kinda vinyl i used, i picked it up from a fabrics store. its fairly lightweight and flexible. i used heavy duty staples on the back to hold it in place while i used 3m adhesive spray to hold it down. i also used a hairdryer for the bends, so that i could flex the vinyl a bit easier.

            Comment


            • #7
              very nice...
              [img width=600 height=150]http://www.sixthsphere.com/storage2/images/wejag665buljx09mu77e.jpg[/img]<br />99SL2 w/97SC2M Engine/Trans Swap, CAI, 2.25 Custom Exhaust

              Comment


              • #8
                I like it maybe I will do that as a later project
                sigpic

                Comment


                • #9
                  Hmm I didn't think about the hair dryer I will have to try that.

                  I dont get the staples wouldn't they just polke back through??

                  Comment


                  • #10
                    no, you use them on the back side to hold the fabric down...you have like an inch or so hanging on the reverse side, staple it down with a staple gun to hold in place as you stretch it over the front.

                    Comment


                    • #11
                      oh it also helps to do small sections at a time. dont spray the whoel panel at once, spray sections, apply pressure, let it dry, and move onto a new section. each section should only be like 2-3 inches in width.

                      Comment


                      • #12
                        ahh. But wouldn't the staples poke back through the plastic and into the fabric?

                        Comment


                        • #13
                          mind didnt, the plastic was just thick enough and the staples just short enough

                          Comment


                          • #14
                            looks good
                            hondas are like tampons, every pussy has one

                            Comment


                            • #15
                              thats why i love my wagon....they have the metal tabs that bend over to keep it in place
                              Nick
                              <br /> 95 SW2
                              <br /> my other wagon is a XB
                              <br /> slammed a wagon and planned on sprayin
                              <br />WAGON IN THE WORKS......MAYBE STILL ALIVE
